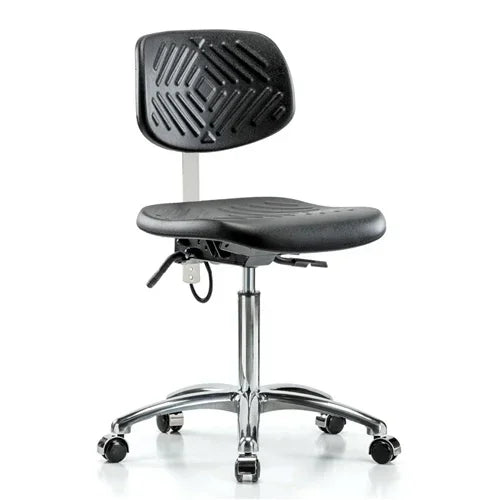

An ESD ergonomic chair for electronics assembly, labs and static-controlled work areas: a self-skinning polyurethane seat and back, a locking back tilt, optional seat tilt and adjustable arms, two height ranges, and a 300 lb capacity.
- Back tilt, seat tilt and arms. The 15.5 in. wide, 10.25 in. high back tilts and locks in place. Options: a seat tilt (8° forward and 3° back, locking in place) and adjustable arms that move up and down, in and out, and twist toward or away from you.

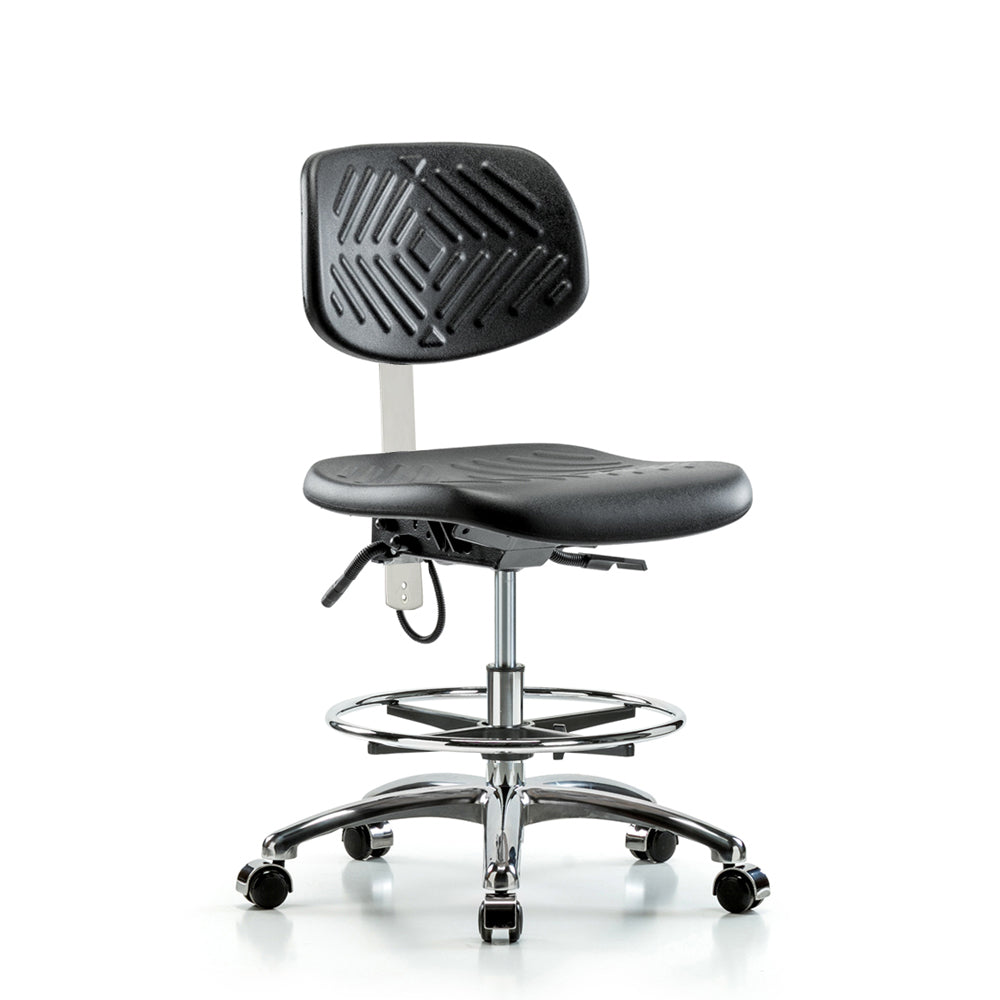

- Two height ranges. Medium Bench Height 20.25–28 in. or High Bench Height 24.5–34.75 in., measured from the floor to the top of the seat. High Bench Height comes with a 20 in. chrome foot ring.
- Tough polyurethane seat. A 16 in. wide, 17 in. deep self-skinning polyurethane seat that resists chemicals, punctures and soil and is easy to clean. Available in Black. ESD models are tested for static-dissipative performance in accordance with ANSI/ESD STM12.1, at a point-to-groundable-point resistance below 1.0 x 10^9 ohms. Testing is in-process sampling, not third-party certification. Static-dissipative performance depends on a controlled environment held at approximately 74°F with relative humidity of at least 15%.
- ESD casters or glides. Static-dissipative dual-wheel casters, or static-dissipative glides with no wheels; both are non-marring. The 27 in. base is polished cast aluminum.
- 15-Year Warranty · Lifetime Cylinder Guarantee. 15 years against defects in the frame and structure, 3 years on the seat and back including static-dissipative performance, and a replacement gas cylinder at no charge for the life of the chair.
| Seat height | Medium Bench Height 20.25–28 in. (EGINC2-ESD) · High Bench Height 24.5–34.75 in. (EGINC3-ESD) |
|---|---|
| Height control | Pneumatic height adjustment |
| Back tilt | Locking back tilt |
| Seat tilt | Optional: 8° forward and 3° back, locks in place |
| Seat | 16 in. wide, 17 in. deep, 1.5 in. thick |
| Back | 15.5 in. wide, 10.25 in. high, 1 in. thick |
| Arms | Optional adjustable arms: up and down 3.5 in., in and out (17–19.5 in. between the arms), and twist; 9 x 3.5 in. pads |
| Material | Static-dissipative self-skinning polyurethane; chemical-, puncture- and soil-resistant; easily cleaned; Black |
| Base | 27 in., polished cast aluminum |
| Feet | ESD casters (static-dissipative, dual-wheel, non-marring) or ESD glides (static-dissipative, non-marring, no wheels) |
| Foot ring | High Bench Height: 20 in. chrome ring with internal lock, included |
| Weight capacity | 300 lb |
| Chair weight | 33–36 lb; 43–46 lb with arms |
| Shipping | Ships within 2–3 business days; free UPS Ground in the contiguous US |
| Assembly | Ships in one box (25 x 11 x 25 in.); press-fit assembly; a QR code on the box opens the instructions |
| Warranty | 15-Year Warranty · Lifetime Cylinder Guarantee: 15 years against defects in the frame and structure, 3 years on the seat and back including static-dissipative performance, and a replacement gas cylinder at no charge for the life of the chair |
Which height do I need?
Medium Bench Height (20.25–28 in.) for lab benches and counters; High Bench Height (24.5–34.75 in.) for high counters and benches. Heights are measured from the floor to the top of the seat.
Can we pay by purchase order?
Yes. Choose Purchase Order / Invoice at checkout. W-9 on request; tax-exempt orders accepted.
How fast does it ship?
Ships within 2–3 business days. Free UPS Ground shipping in the contiguous US.
ESD casters or glides?
Both are static-dissipative and non-marring. Casters roll; glides have no wheels, so the chair stays where it is placed.
Does it arrive assembled?
It ships boxed and goes together with press-fit parts. A QR code on each box opens the assembly instructions (also under Additional Resources).
Can one order mix heights or feet?
Yes. Add each build to the cart, then check out once.
Can we send it back?
Yes. Get any chair or stool back to us within 30 days of delivery, and the return is on us. It needs to come back new and resellable, with all the parts and pieces in the original box.
Need a written quote?
Request a written quote, sent within one business day.
